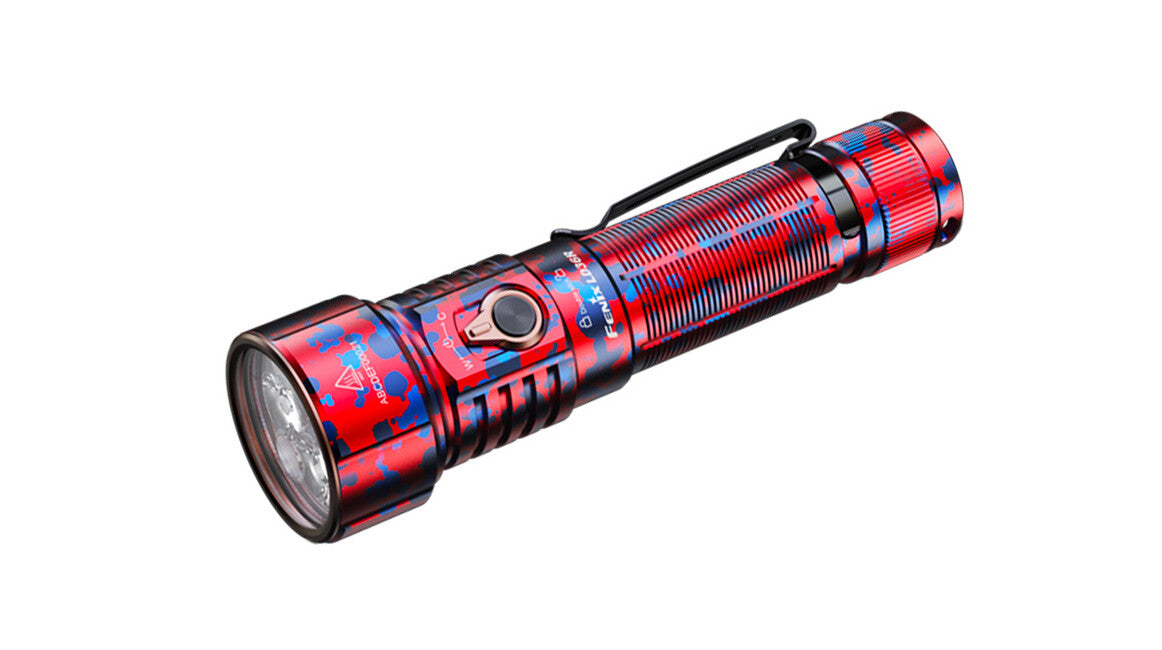

At the heart of the Fenix LD36R torch are three top-tier Luminus SFT-25R LED second-generation emitters, which generate a light beam with power up to 3600 lumens at a distance of up to 385 metres, plus three further RGB LEDs that are your gateway to a fascinating world of coloured lighting. This elegant and versatile torch is not just about raw power, but also about versatility that makes it a reliable companion for every adventure, from demanding mountain climbs to creative photography. What truly sets the LD36R apart is precisely the coloured light. In addition to standard white light modes, it also offers full RGB lighting with the option of smooth selection of any colour shade. Create the perfect atmosphere at camp, enhance your photographs or use coloured light for signalling. Creativity knows no bounds. The package includes a Li-ion rechargeable battery with a capacity of 6000 mAh, which gives the torch power for more than 65 hours of operation. Charging is effortless thanks to the modern and waterproof USB-C port right on the torch body. Thanks to the standard 1/4" thread on the end cap, you can mount the torch on a tripod and light up your entire work area or campsite without having to hold it. With the supplied diffuser, you can also transform it in a flash into the perfect reading lamp or mood lighting with diffused coloured light. The LD36R is the perfect choice for anyone looking for more than just an ordinary torch. It will be appreciated by demanding hikers, climbers, campers and photographers alike, who want to experiment with creative scene lighting. It combines uncompromising performance, versatility and durability in one elegant body.

All torch parameters (light output, battery runtime, waterproofing, beam distance and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

Specifications for the Fenix LD36R rechargeable torch

• Three top-tier high-performance Luminus SFT25R second-generation LEDs and three RGB LEDs are used, all with a lifespan of 50,000 hours.
• Six white light modes: 3600 lumens (3.6 hours) -> 1500 (3.9 hours) -> 350 lumens (10.25 hours) -> 150 lumens (28.9 hours) -> 30 lumens (65.25 hours) -> 3600 lumens strobe.
• Green, purple, blue, pink, orange and red light with power up to 330 lumens with runtime of more than 4.6 hours, coloured breathing light (6.25 hours) and light with smooth colour change.
• Powered by one rechargeable high-capacity Fenix ARB-L21-6000 Li-ion battery, which is included in the package.
• Charging via a waterproof USB-C connector.
• Dual switch with dual lock function for the torch.
• Beam distance 385 metres (37,100 cd).
• The torch has memory and will always switch on to the last selected mode, with the exception of strobe and smooth colour change light.
• Intelligent overheat protection.
• Dimensions 13.96 cm (length) x 4 cm (head diameter) x 2.65 cm (body diameter).
• Weight 231 grammes including battery.
• Torch body made from durable A6061-T6 aluminium alloy.
• Impact resistant to drops from a height of 1 metre.
• Trapezoidal threads highly resistant to wear.
• Hard-to-scratch surface - Type III hard anodised.
• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 metres).
• The torch comes with a wrist strap, belt case, spare O-ring, USB-C charging cable, Fenix ARB-L21-6000 battery and AOD-04 diffuser.
• As optional accessories, you can purchase: USB mains adapter and USB car adapter.

Using the Fenix LD36R torch

From the factory, there may be an insulating cover inside the torch on the battery. Remove it from the battery before first use.

Switching on/off and switching between power and colour modes - To switch the light on or off, hold the side button for approximately 0.5 seconds while a lighting mode is selected (W for white light or C for colour). If the rotary selector is in the centre locked position, you switch the torch on by rotating it to the symbol of the desired lighting mode (W or C). You can switch between white light power modes (W) at any time during operation by pressing the button briefly. Holding the button for 1.2 seconds activates strobe, which you switch off by pressing the button again and return to the previous white light mode. In colour lighting mode (C), you can cycle through colours by pressing the button briefly: red - orange - pink - blue - purple - green. Holding the button for a long time activates smooth colour change - release the button when you reach the desired shade. The next brief press will switch you back to the originally selected colour from the 6 pre-defined options.

Memory for the last set mode - The torch will always switch on to the last selected mode, with the exception of strobe and smooth colour change.

Lock/unlock - To prevent accidental switching on of the torch, for example in luggage, press the button twice quickly (the torch must be off), the torch will then flash and is locked. Unlock by pressing the button twice quickly again. You can also lock the torch with the rotary selector by moving it to the centre position. Both locks can be combined and the torch locked first with the button and then with the rotary selector. Accidental switching on can also be prevented by loosening the torch head.

Battery replacement - Unscrew the torch head and insert the battery with the positive pole facing the head. Then tighten the torch head fully again.

Charging - Flip open the dust cover and plug the USB-C charging cable into the torch's charging port. Once charging is complete, seal the dust cover again. The typical charging time for the included ARB-L21-6000 battery is 3.5 hours with a 5 V/2.5 A USB source. During charging, the indicator lights red. As soon as the battery is fully charged, the indicator lights green. During charging, the torch can be used in any mode except strobe and smooth colour change; depending on the battery charge level, not all modes may be available and the total charging time may be extended.

Battery charge status indicator - When the torch is off, activate the battery charge level indicator by pressing the button briefly for three seconds. Green indicates sufficient charge (100% - 85%), green flashing (85% - 50%), steady red (50% - 25%) and flashing red critically low battery (25% - 1%). If the battery is discharged, the torch will gradually automatically switch to lower power modes; in the lowest mode, the battery charge indicator then flashes red to alert you that the battery needs to be recharged or replaced. Only works with original batteries.

Intelligent overheat protection - When the torch is used for extended periods at high power modes, a large amount of heat accumulates. When the torch reaches a temperature of 60 °C or higher, it automatically reduces power by a few lumens to lower the temperature. When the temperature drops below 60 °C, the power gradually increases again.

Low battery warning - If the battery voltage drops below 3.0 V, the torch automatically switches to a lower mode until it reaches the lowest power mode. Once the lowest power is reached, the battery charge status icon begins to flash on the OLED display. In this case, charge the torch as soon as possible or replace the battery with a charged one.

Warning

• Do not disassemble sealed parts in the torch head yourself, as this will void the warranty.
• Use only the high-current rechargeable Li-ion batteries of type 21700 listed above.
• If the protective rubber O-rings appear to be damaged after prolonged use, replace them. The O-rings should also be lubricated to prevent rubber erosion. By following these guidelines, the torch will be properly protected against water.
• If the torch does not switch to higher power modes, flashes or does not light up, it may be due to one of the following reasons:
  • The battery is almost discharged - charge it.
  • The contacts inside the torch are dirty – clean them with a cotton bud soaked in alcohol.
  • The rear of the torch is loose – tighten it.

Warranty

Five-year warranty on the torch, two-year warranty on the battery.
